Din Rail power supply NDR-75-12 for industrial

Short Description:

1. AC input range ,constant DC output

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability, good performance.

5. Widely used in Switch, industrial automation, device, etc.

6. 24 months warranty


Product Detail

Detail

Product Tags

Features

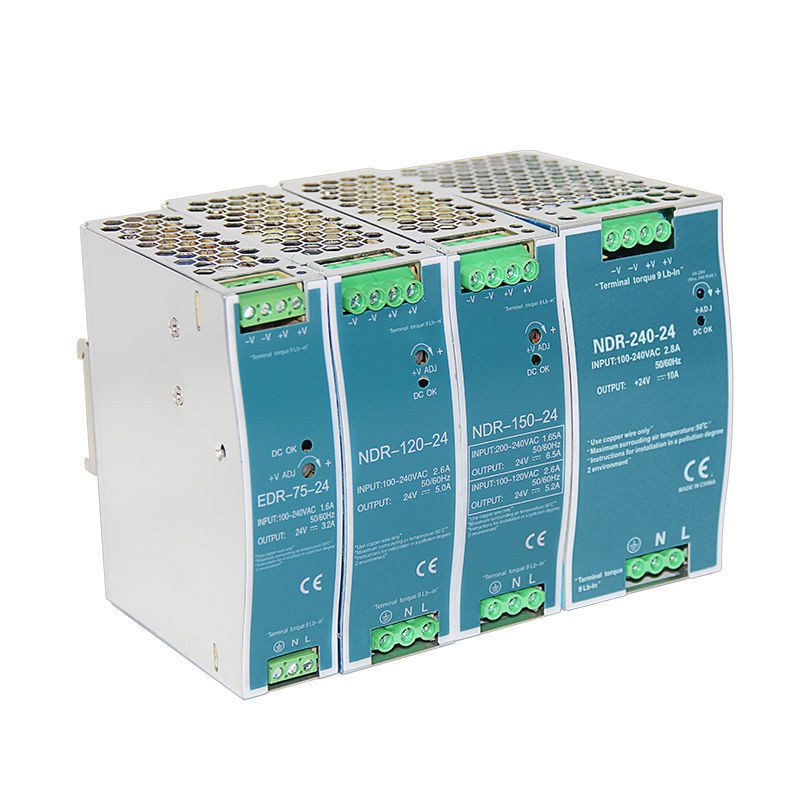

Din Rail power supply NDR-75-12 for industrial-01 (2)

1. AC input range ,constant DC output

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability, good performance.

5. Widely used in Switch, industrial automation, device, etc.

6. 24 months warranty

Specifications

                                  Model NDR-75-12 NDR-75-24

OUTPUT

DC Voltage 12V 24V
Rated Current 6.3A 3.2A
Current Range 0-6.3A 0-3.2A
Rated Power 75W 75W
Ripple & Noise (max.) Note.2 80mVp-p 120mVp-p
Voltage Adj. Range 12 ~ 14V 24 ~ 48V
Voltage Tolerance Note.3 ±2% ±1%
LINE REGULATION ±0.5% ±0.5%
LOAD REGULATION ±1% ±1%
Setup, Rise Time 1200ms,60ms/230VAC 2500ms,60ms/115VAC at full load
Hold Up Time 16ms/230VAC 10ms/115VAC at full load

INPUT

Voltage Range 85~264VAC 120~370VDC
FREQUENCY RANGE 47~63Hz
AC Current 1.45A/115V 0.9A/230V
Efficiency 88% 88%
Inrush Current COLD START 15A/115VAC 30A/230VAC

PROTECTION

Over Load 105%~150% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage 14~17V 29~33V
Protection type : Shut down o/p voltage, re-power on to recover
  Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

Working Temp., -20℃~+70℃
WORKING HUMIDITY 20 ~ 95% RH non-condensing
Storage Temp., Humidity -40℃~+85℃, 10~95% RH
Temp. Coefficient ±0.03%/°C(0~50°C)
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage I/P-O/P:3KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
EMC EMISSION Compliance to EN55032, EN55035 Class B, EN61000-3-2,-3
  DIMENSION 32*125.2*102 mm
Din Rail power supply NDR-75-12 for industrial-01 (5)
