1000M 48 Port Managed Gigabit Ethernet Switch

Short Description:

This model is a 48-ports 10/100/1000Mbps Desktop PoE Switch and 2 1.25G SFP optical ports, it provides the seamless network connection. These PoE ports can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. VLAN isolation to meet security monitoring requirements Support extension technology, data transmission and power supply up to 250m.

Product Detail




Product Tags

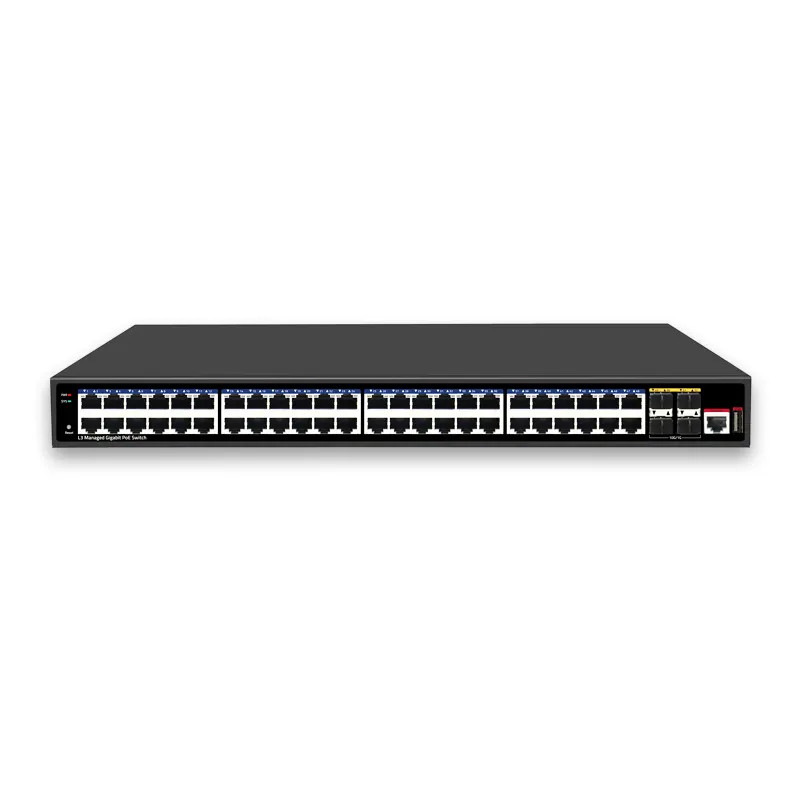

1000M 48 Port Managed Gigabit Ethernet Switch-01 (4)

◆ 48* 10/100/1000M Adaptive RJ45 port+2 1.25G SFP optical ports

◆ Support IEEE802.3、IEEE802.3u,IEEE802.3x,IEEE802.3af/at;

◆ Ethernet Uplink port supports 10/100/1000M adaptive;

◆ Supports IEEE802.3x full duplex and Backpressure half duplex flow control;

◆ Support port auto flip (Auto MDI/MDIX);

◆ All ports support wire-speed switching;

◆ Automatically supplied to adaptive devices;

◆ Support VLAN Mode and Extend 250 meters Mode

◆ Plug and play, which can connect the switch to other network device ports through direct or cross network cables


Port Description
48 RJ45 ports
Fixed port 48*10/100/1000Base-T
Power interface 100-220V /AC interface
Operating temperature -25~+55℃
Storage temperature -4075
Relative humidity 5%95%non-condensing
Thermal methods Air cooling
MTBF 100,000 hours
Electrical Specifications
Input Voltage AC 100-240V 50/60HZ
Mechanical Dimensions
Hull Metal case
Installation Method Rack mounted
Net Weight 2.8kg
Product size 445*295*45mm
Networking Protocol
Switch Properties
Total Bandwidth Of Backboard 112Gbps
 Forwarding Rate 80.64M
MAC (Address Table) 8K
Power Consumption Full load45W
Certification CEFCCRohSISO90012008
Security UL508
Accessories Switch, power cord, certificate of conformity, manual, dust plug


1. Can the switch be managed remotely?

Yes, most of our switches have remote management capabilities. Through a web-based interface or dedicated software, you can easily manage and configure switch settings, monitor network activity, and perform firmware updates from anywhere.

2. Is the switch compatible with different network protocols?

Our switches are designed to be compatible with a variety of network protocols including Ethernet, Fast Ethernet and Gigabit Ethernet. They can be seamlessly integrated with different devices and network architectures without any compatibility issues.

3. Does the switch support VLAN (Virtual Local Area Network)?

Yes, our switches support VLANs, allowing you to create virtual networks within your physical network. This enables better network segmentation for enhanced security, traffic control, and resource optimization.

4. What kind of warranty does the switch offer?

We back all switches with a standard manufacturer's warranty, typically 2 to 3 years, depending on the model. The warranty covers any defects in material or workmanship for the specified period.


Widely used in:

● Smart city,

● Corparate Networking

● Security Monitoring

● Wireless Coverage

● Industrial Automation System

● IP phone (teleconferencing system), etc.
