China OEM Manufacturer 24 ports POE Gigabit Switch

Short Description:

This model is an industrial-grade gigabit optical fiber transceivers, which adopt a full-industrial-grade design and high protection level, which enhances the reliability and security of industrial networks. to meet transportation, electricity, energy source, outdoor monitoring, and other deployment requirements in harsh environments.


Product Detail

Detail

Product Tags

Features

Gigabit Switch Ethernet

• 8 port 10/100/1000Mbps POE + 2  Port Fiber SFP.

• Support 12vdc , 24vdc, 48vdc input

• Data control: support 802.3x full duplex flow control, support network storm suppression

• Redundant network: support STP/RSTP/MSTP, support ERPS (self-healing time <20ms)

• Support IPv6, static routing •Support DHCP Server, DHCP replay, Qos

• Multicast management: Support IGMP Snooping ,IGMP V1/V2/V3;Support GMRP , static multicast

• Support port-based VLAN Port, IEEE 802.1Q VLAN and GVRP protocol, simple network planning

• QoS: Support QoS (IEEE 802.1p/1Q) and TOS/ Diffserv to increase network stability

• Security management: support ACL access control list, support 802.1x, support user classification management

• Management function: support Web, SNMP management mode

• Monitoring maintenance: support port mirroring, interface status monitoring, log management

• Alarm function

• Support 1588 clock protocal

Specifications

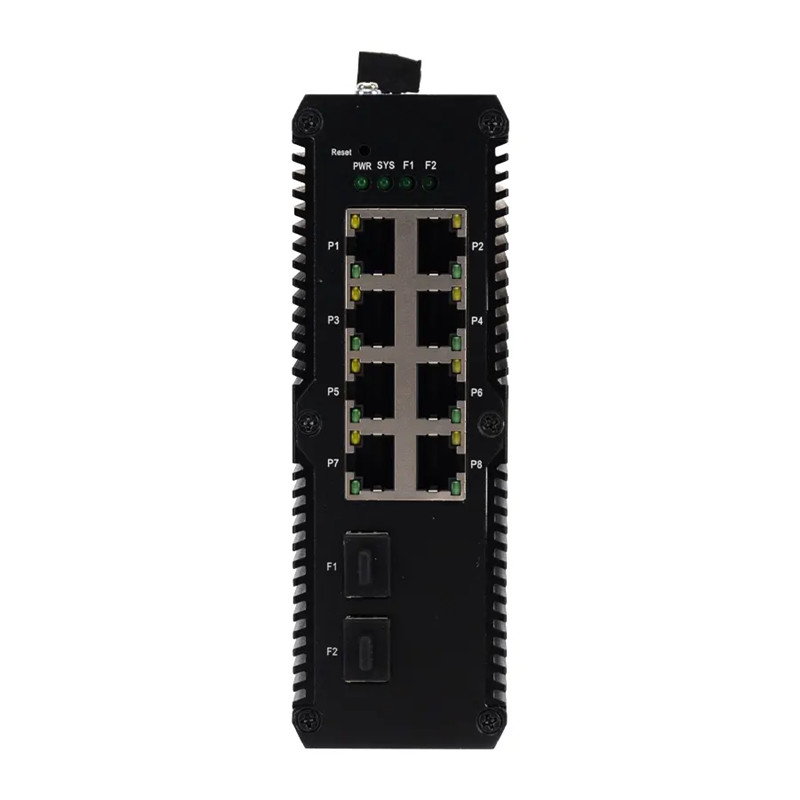

Model HX-8P2GF
Product Name 8 port 10/100/1000M +2 port SFP industrial POE Switch
PoE power each port 15W/25W/30W
Uplink Ports 2 port SFP slot 1G
Input Voltage DC 12~57V
Device Performance Surge 6KV, ESD 15KV
PoE Protocol IEEE802.3af/IEEE802.3at
Throughput 14.88Mpps
Packet Buffer 2M
MAC Address 4K
Jumbo Frame 4096bytes
Fiber Media Multi-mode: 2km; Single-mode: 20/40/60/80KM
Switching Capacity 20Gbps
Transfer Mode Store and forward
MTBF 100,000 hours
Protection Lightening protection, IP40 protection
Power Supply Input Voltage: DC12-57V /Terminal block
Shell IP40 protect grade, metal shell
Installation DIN-Rail or Wall mounts
Warranty 5 years
Network Protocols IEEE802.3
IEEE802.3i
IEEE802.3u
IEEE802.3ab
IEEE802.3z
PoE Specification PoE ports: 1-8 ports support PoE
Each PoE Port: Max. 30 Watts
Power Pin Assignment:1/2+;3/6-
Output Voltage: DC48V
Industry Standard EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Working Environment Working temperature: -40~75℃ ;
Storage temperature: -40~85℃
Relative Humidity: 5%~95 %( no condensation)
Weight & Size ProductDimension(L*W*H): 160*135*44mm
PackageDimension(L*W*H): 242* 207*86mm
N.W: 0.73kg
G.W: 0.90kg

Applications

Widely used in:

● Widely used in:

● Smart city,

● Corparate Networking

● Security Monitoring

● Wireless Coverage

● Industrial Automation System

● Rail transit, etc.

Applications01-9
Applications01-8
Applications01-7
Applications01-5
Applications01-2
Applications01-6
Applications01-3
Applications01-1
