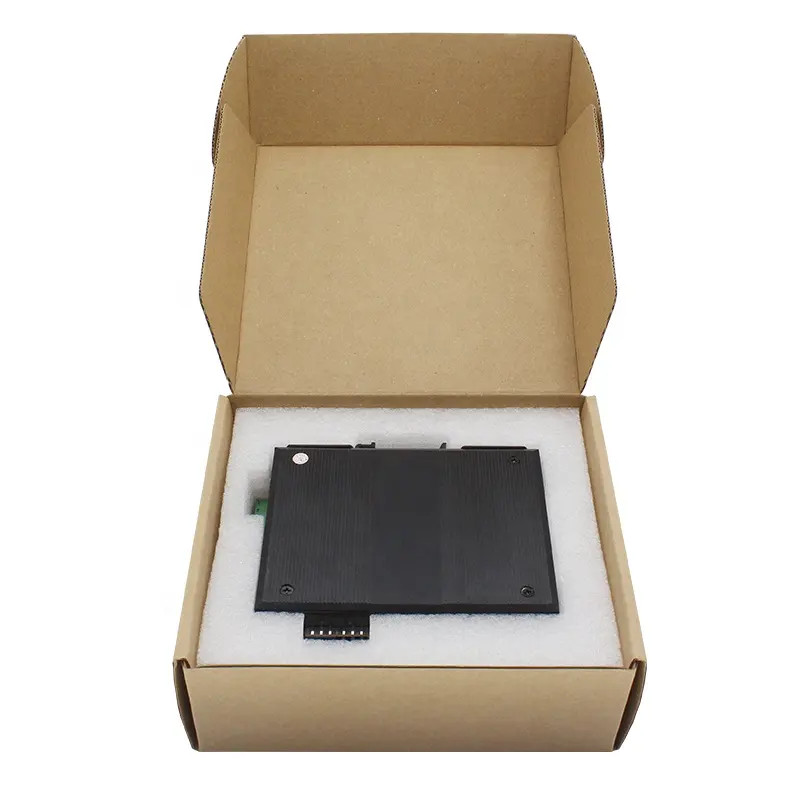

24 ports Din Rail Industrial Managed Gigabit Switch

Short Description:

The industrial Gigabit PoE Switch is 24*Gigabit Ethernet + 4*Gigabit SFP Optical switch is a new generation of multi-service access network management Gigabit redundant Ethernet switch, with high integration, rich functions, simple and convenient, etc., representing the industry highest level. Contains 24 Gigabit Ethernet ports and 4 Gigabit optical ports, especially suitable for occasions with large data streams such as video transmission. Supports rich Layer 2 management protocols required for industrial switch applications, supports ITU G.8032 redundant ring network protocol, and forms cascaded, single-ring, tangent-ring networks and other topological structures.


Product Detail

Product Tags

Features

Networks Switch

● 24 port 10/100/1000Mbps TX RJ45 ports, 4x100/1000Base-FX Fast SFP ports

● Support port bandwidth limitation, port flow control, broadcast storm suppression;

● Ethernet interface with lightning protection, radar protection to GB/T17626.5 (IEC61000-4-5) short circuit current wave
10/700μs, open circuit peak output voltage 6KV standard;
● Support a wide range of AC and DC input (9V-48V), support internal isolation, redundant dual power input, power supply supports
overload protection, anti-reverse connection protection;
● Comply with industrial level 4 electromagnetic compatibility requirements;
● Super lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc., no fan for efficient heat dissipation, reducing repair time.

Specifications

Product Number

HX-G24F4

Supported Protocol

IEEE802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE802.1q、IEEE802.1p、IEEE802.1z、IEEE802.1d、IEEE802.1s、IEEE802.1w、IEEE802.1ax、
IEEE802.1ak

Maximum Frame Length

10K

Port Number

24*10/100/1000M RJ45 electrical ports, 4*100M/1000M SFP optical ports, and 1*Console port

Network Medium

1000Base-LX: Use long-wavelength laser (1310nm) to cross multi-mode and single-mode fiber, the maximum distance of multi-mode
fiber is 550m, and single-mode is 20-120km.
1000Base-SX: The maximum transmission distance of 62.5μm multimode fiber is 275m, and the maximum transmission distance of 50μm
multimode fiber is 550m.
10Base-T: UTP of category 3 or above; (supports a maximum transmission distance of 200m)
100Base-TX: Category 5 UTP; (supports a maximum transmission distance of 100m)
1000Base-T: CAT-5E UTP or Category 6 UTP (supporting a maximum transmission distance of 100m)

VLAN Address Table

4K

MAC Address Table

8K

Cache

4Mbits

Backplane Bandwidth

56Gbit

Filtering and Forwarding Rates

10Mbps:14880pps
100Mbps:148800pps

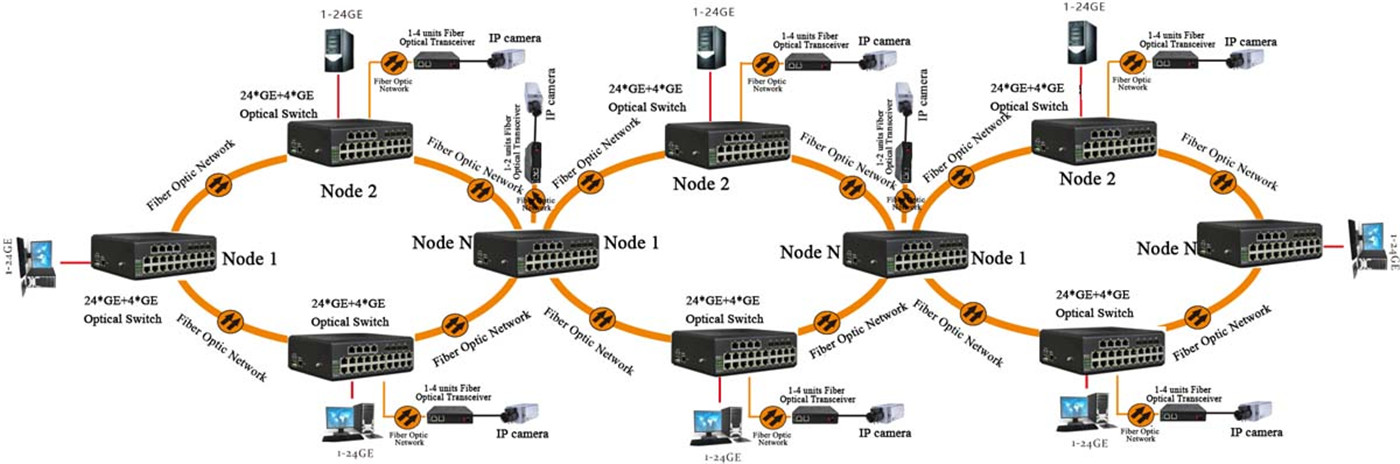

Applications

24 ports Din Rail Industrial Managed Gigabit Switch-01
