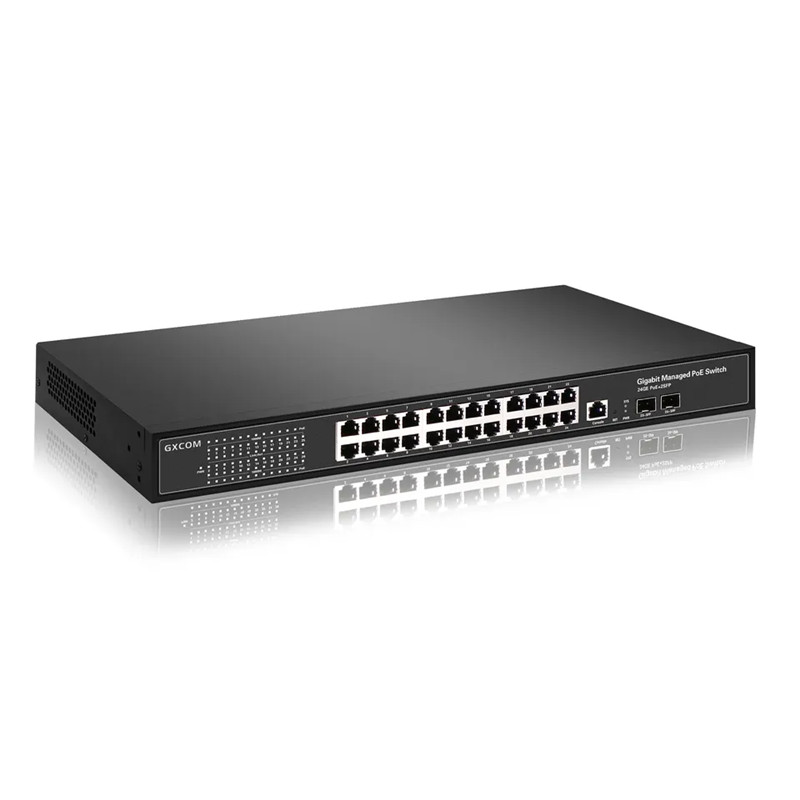

24 ports 1000Mbps POE switch 4 port 10G SFP Managed network switch

Short Description:

This PoE Switch is a Gigabit managed PoE switch, support 802.3at/af-compliant PoE , single port PoE power supply of up to 30W; advanced security strategies and rich layer 2 management features.This JetStream gigabit managed switch is cost-effective for the ideal small and medium business solution.


Product Detail

Product Tags

Features

Fast Network Switch

• 24*RJ45 10/100/1000M + 4*1000M Combo Port PoE Switch,1-24 ports support IEEE 802.3af/at;

• PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port;

• Only support 1,2(+)/3,6(-);

• Support QOS, STP/RSTP, IGMP, DHCP, SNMP, WEB, VLAN, ERPS etc.;

• Switching capacity:56Gbps, MAC table:8K;

• POE port can be real-time network management, timed on/off, can force POE working mode, real-time display of POE port power;

• Compatible with 1U rack, built-in internal power adapter.

Specifications

Product name

24 GE 4 10G SFP L3 Managed PoE Switch

Model

HX24K-P4S

Fixed Port

24*10/100/1000Base-TX PoE

4*100/1000/2500/10000M SFP

PoE Port

1-2 port supports IEEE802.3af/at/poe++/bt, max 90W/port PoE out

3-24 port supports IEEE802.3af/at, max 30W/port, PoE out

PoE type

IEEE802.3af/at

Console Port

1*console port

Reset Key

1

PoE Pin

Af/at/bt: 12+ 45+ ; 36- 78-

Af/at: 12+ 36-

PoE Bridge

max 400W

CPU

MIPS-34Kc 800GHz

DDR

4G DDR3

Buffer

12Mbit SRAM Packet Buffer

FLASH

512MBytes

RAM

512MBytes

Bandwidth

512Gbps

Packet Forwarding

95.23Mpps

MAC

16K

Jumbo Frame

Jumbo frame up to 12KB

VLAN Address

4K

Link Aggregation

Supports 128 trunk groups with up to 8 members per group

L3 Routing

IPV4 supports 6K; IPV6 supports 2K;

Transmission Distance

10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(150 meter)

1000BASE-TX : Cat6 or later UTP(150 meter)

SFP: 100M/1G/10G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module)

LED Indicator

PWR:Power LED

SYS:System LED

1-24:10/100/1000M Network connection indicator

25-28:10G SFP connection indicator

Power

Built-in power AC:100-240Vac 50-60Hz 5A max 415W

Operating Temperature/Humidity

-10~+55°C;5%~90% RH Non coagulation

Storage Temperature/Humidity

-40~+75°C;5%~95% RH Non coagulation

Product /Packing size(L*W*H)

440*290*45mm 515*375*95mm

N.W/G.W(kg)

3.5kg/4.2kg

Lightning Protection level

6KV 8/20us;IP30

Installation

Rack-mount (optional machine hanger spare parts)

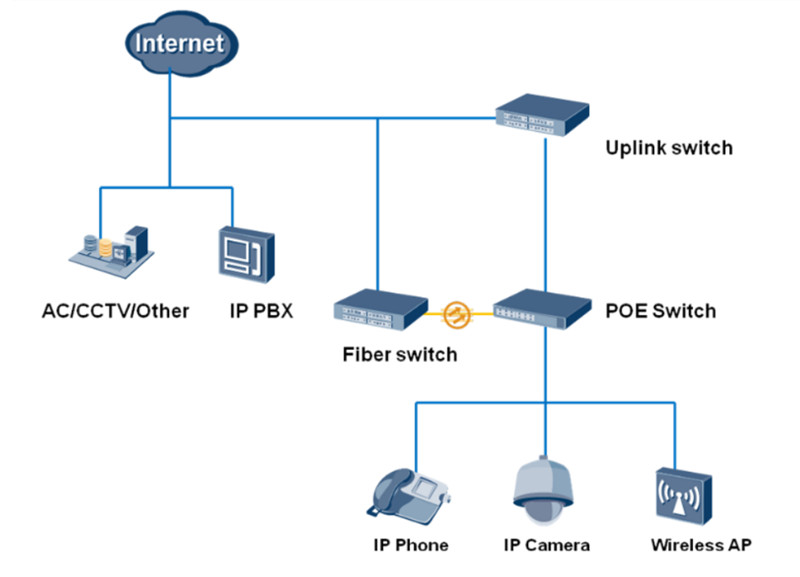

Applications

24 ports 1000Mbps POE switch 4 port 10G SFP Managed network switch
