Din Rail power supply NDR-120-24 for industrial

Short Description:


Product Detail

Detail

Product Tags

Features

NDR-120-24

1. AC input range ,constant DC output

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability, good performance.

5. Widely used in Switch, industrial automation, device, etc.

6. 24 months warranty

Specifications

NDR-120 120W Rail Switching Power Supply

Specs

Technical data

Output

DC voltage

12V

24V

48V

Rated current

10A

5A

2.5A

Rated power

120W

120W

120W

Ripple and noise ①

120mV

120mV

150mV

Voltage accuracy

±2%

±1%

Output voltage regulation range

±10%

Load adjustment rate

±1%

Linear adjustment rate

±0.5%

Input

Voltage range

85-264VAC 47hz-63hz (120vdc-370vdc: DC input can be realized by connecting AC / L +, AC / N (-))

Efficiency (typical) ②

86%

88%

89%

Working current

2.25A 110VAC <1.3A 220VAC

Impulse current

110VAC 20A, 220VAC 35A

Start, rise, hold time

500ms、70ms、32ms :110VAC/500ms、70ms、36ms :220VAC

Protect

overload protection

105% - 150% type: protection mode: automatic recovery after removing the abnormal condition of constant current mode

Overvoltage protection

When the output voltage is more than 135%, the output will be turned off. It will recover automatically after the abnormal

conditions are removed

Short circuit protection

+VOWhen the abnormal condition of output is released, it will recover automatically

Environmental

Working temperature and humidity

-10℃~+60℃;20%~90RH

Storage temperature and humidity

-20℃~+85℃;10%~95RH

Safety/EMC

Withstand voltage

Input output: 3kVac input ground: 1.5kVac output ground: 0.5kvac for 1 minute

Leakage current

1mA/240VAC

Isolation resistance

Input output, input shell, output shell: 500VDC / 100M Ω

Other

size

40*125*113mm

Net weight

600g

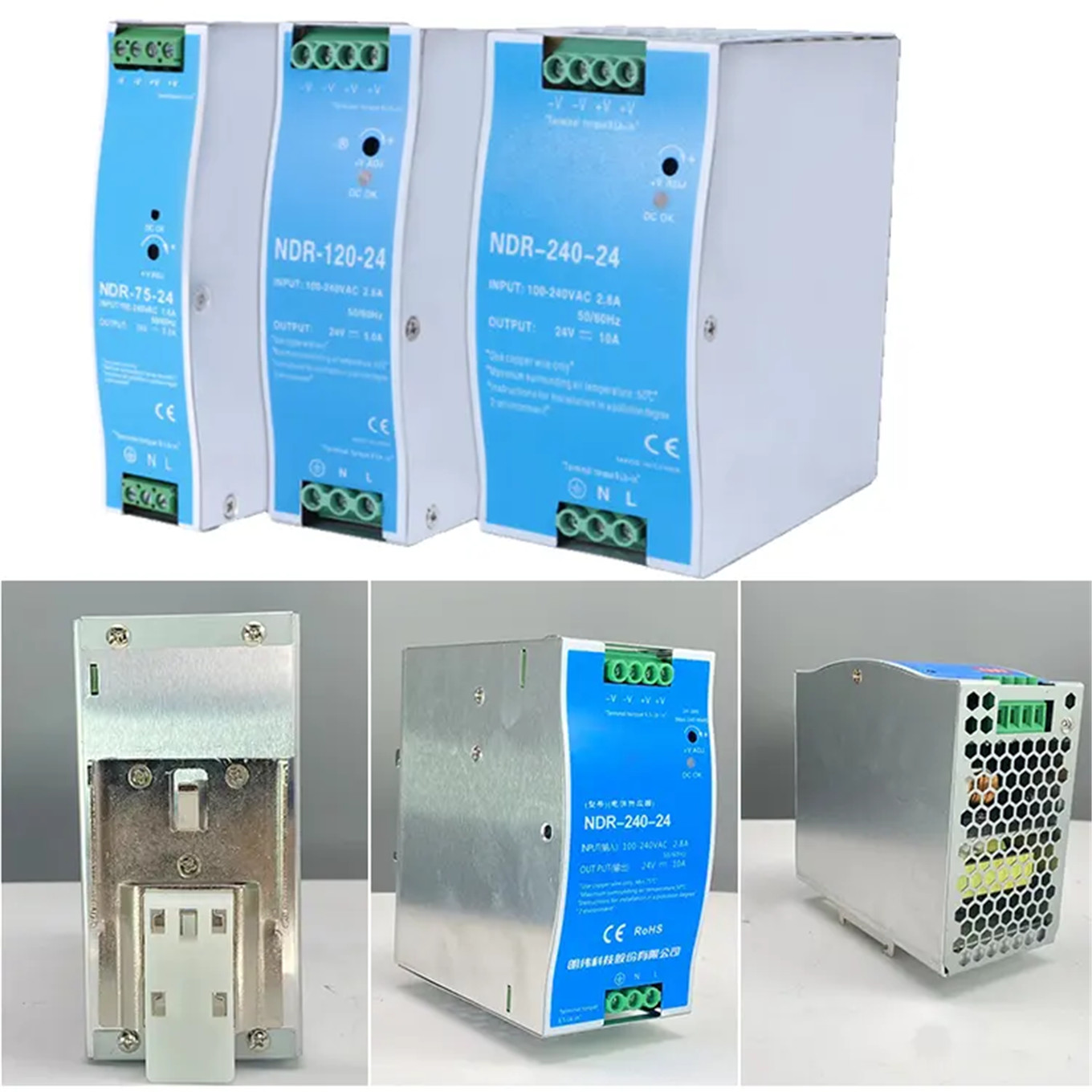

Din Rail power supply NDR-75-12 for industrial-01 (5)

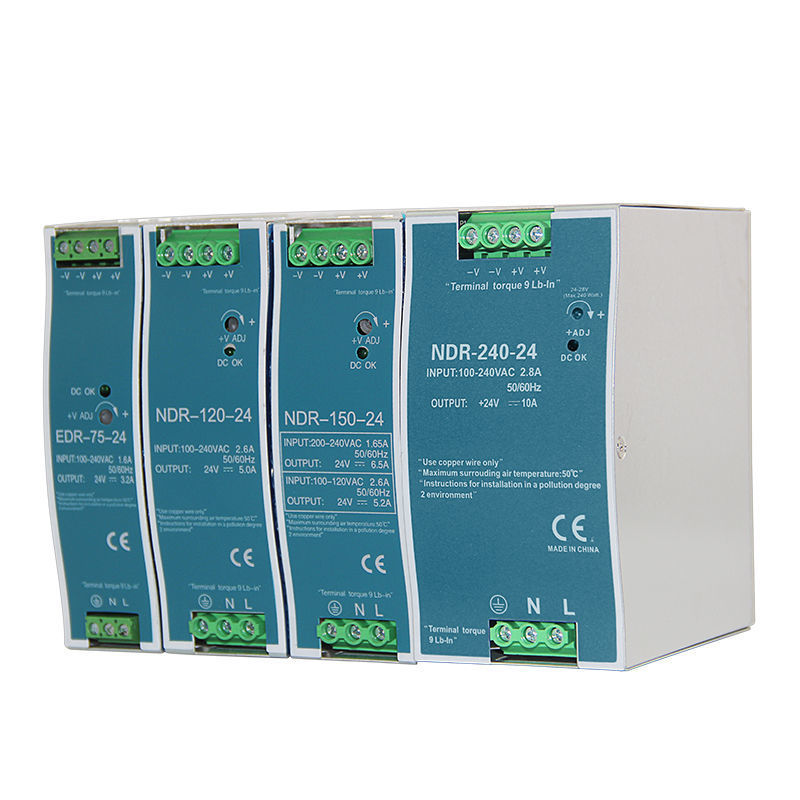

Din Rail power supply NDR-120-24 for industrial-01 (5)
