OEM 5 ports Gigabit RJ45 Ports Ethernet Unmanaged Switch

Short Description:

This model is a 5-ports 10/100/1000Mbps Ethernet Unmanaged Switch. It should be connected to the corresponding non-standard electrical equipment (such as a wireless bridge), or the corresponding non-standard separation line to convert, and then achieve the PoE power supply. It can supply power to various adaptable terminals through network cables to meet the demand for high density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks.

This 5-port Gigabit unmanaged switch is built to meet the demands of today’s high-speed networks. It features five Gigabit Ethernet ports, providing lightning-fast data transfer speeds of up to 1000Mbps. This means you can effortlessly transmit large files, stream high-definition videos, and play online games without any lag or buffering issues. Say goodbye to slow internet connections and hello to smooth and uninterrupted network performance.

Product Detail


Product Tags

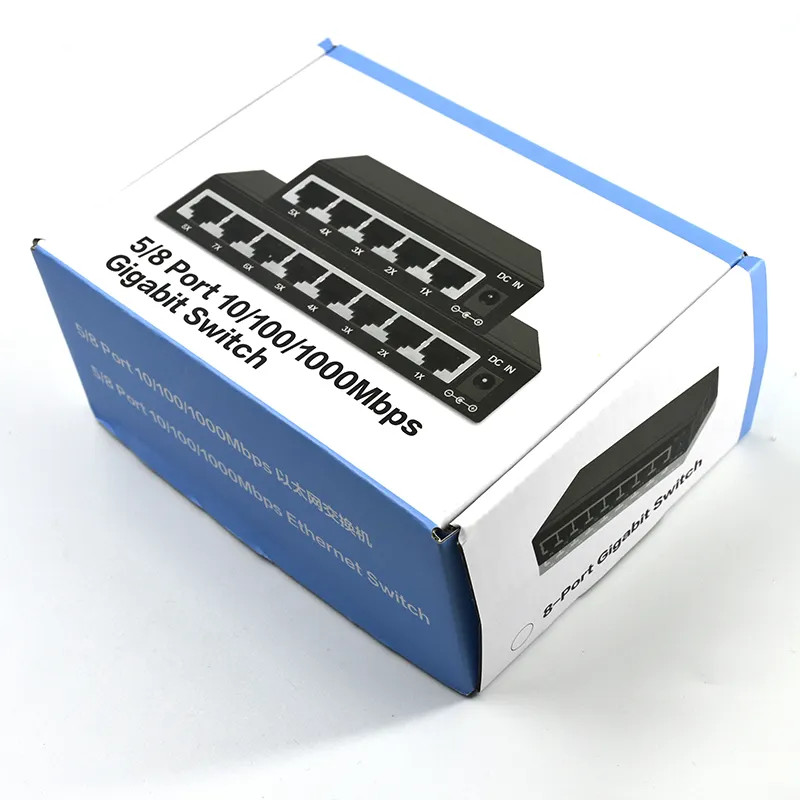

OEM 5 ports Gigabit RJ45 Ports Ethernet Unmanaged Switch-01 (3)

◆ 5* 10/100/1000M RJ45 port
◆ Support IEEE802.3、IEEE802.3u,IEEE802.3x,IEEE802.3af/at;
◆ Ethernet Uplink port supports 10/100/1000M adaptive;
◆ Supports IEEE802.3x full duplex and Backpressure half duplex flow control;
◆ Support port auto flip (Auto MDI/MDIX);
◆ All ports support wire-speed switching;
◆ Automatically supplied to adaptive devices;
◆ Support VLAN Mode and Extend 250 meters Mode
◆ Plug and play, which can connect the switch to other network device ports through direct or cross network cables
◆ Full-duplex working mode
◆ Auto MDI /MDIX
◆ Wall-mount capability
◆ Plug and play

OEM 5 ports Gigabit RJ45 Ports Ethernet Unmanaged Switch-01

Wall-mount capability

Plug and play

Full-duplex working mode



Port Description
5 RJ45 ports
Fixed port 5*10/100/1000Base-T
Power interface DC5.5*2.1mm
Operating temperature -25~+55℃
Storage temperature -4075
Relative humidity 5%95%non-condensing
Thermal methods Air cooling
MTBF 100,000 hours
Electrical Specifications
Input Voltage DC 5V
Mechanical Dimensions
Hull Plastic/Metal case
Installation Method stand alone type
Net Weight 0.15kg
Product size 93*67*27mm
Networking Protocol
Switch Properties
Total Bandwidth Of Backboard 10Gbps
 Forwarding Rate 7.2M
MAC (Address Table) 2K
Power Consumption Full load5W
Certification CEFCCRohSISO90012008
Security UL508
Accessories Switch, power cord, certificate of conformity, manual, dust plug


Widely used in:

● Smart city,

● Corparate Networking

● Security Monitoring

● Wireless Coverage

● Industrial Automation System

● IP phone (teleconferencing system), etc.

Ethernet switch 8 port passive POE switch -01 (5)
