Ethernet switch 8 port passive POE switch

Short Description:

This model is a 8-ports 10/100/1000Mbps Desktop PoE Switch. It should be connected to the corresponding non-standard electrical equipment (such as a wireless bridge), or the corresponding non-standard separation line to convert, and then achieve the PoE power supply. It can supply power to various adaptable terminals through network cables to meet the demand for high density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks..

Product Detail




Product Tags

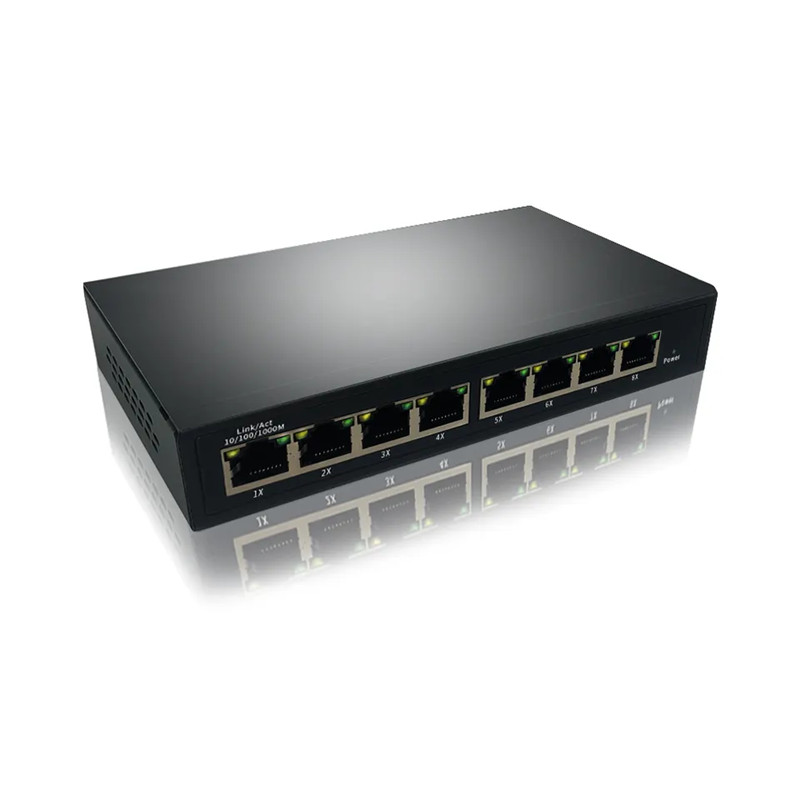

Ethernet switch 8 port passive POE switch -01 (4)

◆ 8* 10/100/1000M RJ45 port

◆ Support IEEE802.3、IEEE802.3u,IEEE802.3x,IEEE802.3af/at;

◆ Ethernet Uplink port supports 10/100/1000M adaptive;

◆ Supports IEEE802.3x full duplex and Backpressure half duplex flow control;

◆ Support port auto flip (Auto MDI/MDIX);

◆ All ports support wire-speed switching;

◆ Automatically supplied to adaptive devices;

◆ Support VLAN Mode and Extend 250 meters Mode

◆ Plug and play, which can connect the switch to other network device ports through direct or cross network cables


Port Description
8 RJ45 ports
Fixed port 8*10/100/1000Base-T
Power interface DC5.5*2.1mm
Operating temperature -25~+55℃
Storage temperature -4075
Relative humidity 5%95%non-condensing
Thermal methods Air cooling
MTBF 100,000 hours
Electrical Specifications
Input Voltage DC 5~12V
Mechanical Dimensions
Hull Plastic/Metal case
Installation Method stand alone type
Net Weight 0.2kg
Product size 127*78*27mmmm
Networking Protocol
Switch Properties
Total Bandwidth Of Backboard 16Gbps
 Forwarding Rate 11.32M
MAC (Address Table) 2K
Power Consumption Full load6W
Certification CEFCCRohSISO90012008
Security UL508
Accessories Switch, power cord, certificate of conformity, manual, dust plug


1. What payment methods do you accept?

We accept a variety of payment methods including credit cards, wire transfer, debit cards and mobile wallets, etc.

2. Can the switch handle high network traffic?

Absolutely! The switch is designed to efficiently handle high network traffic. It has high-speed forwarding capability, which ensures smooth data transmission even during periods of heavy use.

3. Does the switch support PoE (Power over Ethernet)?

Yes, many of our switches support PoE, allowing you to power devices such as IP cameras or wireless access points directly through the Ethernet cable, eliminating the need for a separate power cord.

4. How many ports does the switch have?

Number of ports varies by model. We offer switches with different port configurations ranging from 5 ports to 48 ports, ensuring you can choose the one that best suits your network needs.


Widely used in:

● Smart city,

● Corparate Networking

● Security Monitoring

● Wireless Coverage

● Industrial Automation System

● IP phone (teleconferencing system), etc.
