100M 8 port network 48V active PoE switch

Short Description:

This model is a 8-port 10/100Mbps Desktop PoE Switch provides the seamless network connection. These PoE ports can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. VLAN isolation to meet security monitoring requirements Support extension technology, data transmission and power supply up to 250m. Independent uplink port can ensure that the port can easily cope with sudden high traffic, and ensure that the upstream channel is unobstructed. It is easy to install and use and requires no configuration and installation. With desktop design, outstanding performance and quality, the 10 PoE switch is a great selection for expanding your home or office network.


Product Detail

Detail

Product Tags

Features

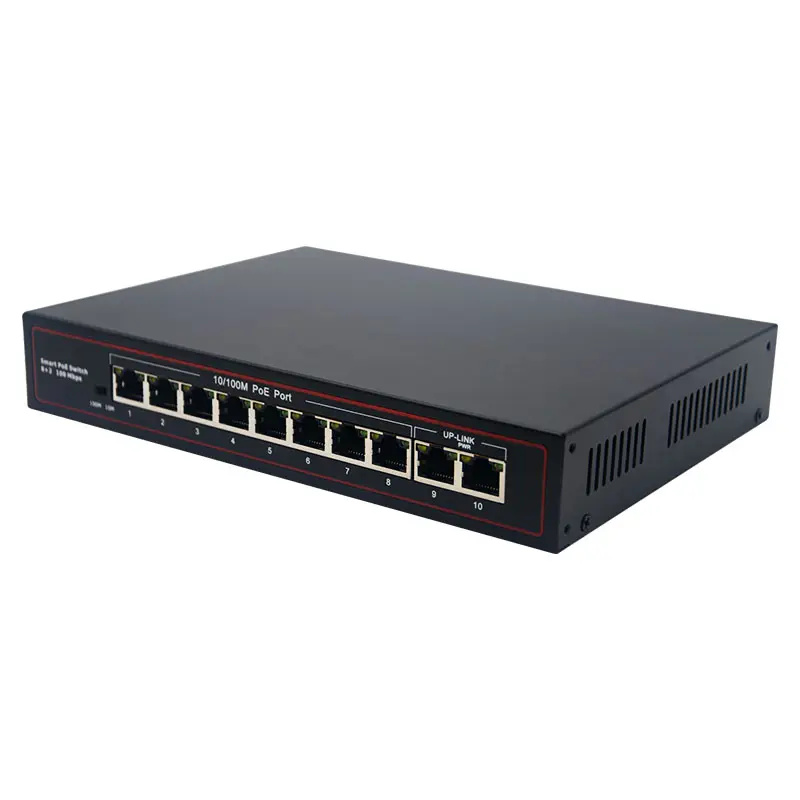

POE switch 10 port

◆8* 10/100M PoE Ports+2*10/100Mbps RJ45 Uplink port;

◆Support IEEE802.3、IEEE802.3u,IEEE802.3x,IEEE802.3af/at;

◆Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);

◆Ethernet Uplink port supports 10/100/1000M adaptive;

◆Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;

◆Support port auto flip (Auto MDI/MDIX);

◆All ports support wire-speed switching;

◆Automatically supplied to adaptive devices;

◆Panel indicator monitoring status and help failure analysis;

◆Support VLAN Mode and Extend 250 meters Mode

Specifications

Product Name

8 ports 10/100Mbps POE Switch

Product Model

HX-DP8EH

DATA PIN

1/2+,3/6- 4/5+7/8-

Power Supply Type

Build In, 1/2+,3/6-

PoE Output Power

15.4W/30W

Connector

8*100Mbps POE port

Network Medium

Cat5 (UTP) or more

Technology

Network Standards

IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet

PoE power

15.4W per port(IEEE802.3af). Internal power supply

Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-)

Processing types

Store-and-forward

Half-duplex back pressure and IEEE 802.3x full-duplex flow control

Address database Table Size

2K MAC address

Buffer memory

48Kb embedded memory per unit

Backboard Bandwidth

2Gbps Full duplex

Network Latency

Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission

Power

Input

DC52V

PoE power consumption

15.4W per port(IEEE802.af/at)

Overload current protection

Present

Mechanical

Casing

Metal

Installation

DESKTOP/Rack mounting with Bracket

Interface

LED Indicators

System: Power, PoE Maximum power

Per port: Link, Activity, Speed, PoE active, PoE error

Environment specification

Operating temperature

-10-55℃(32-104℉)

Storage temperature

-40-70℃(14-158℉)

Operating humidity

90% maximum relative humidity, non-condensing

Storage humidity

95% maximum relative humidity, non-condensing

Regulatory Approval

ISO

Manufactured in ISO9001 facility

Safety

CE/CCC

Warranty

2 years

Dimensions

202*140*45mm (L*W*H)

Weight

N.W:0.92Kg G.W:1.2Kg

Applications

Widely used in:

● Smart city,

● Corparate Networking

● Security Monitoring

● Wireless Coverage

● Industrial Automation System

● IP phone (teleconferencing system), etc.
