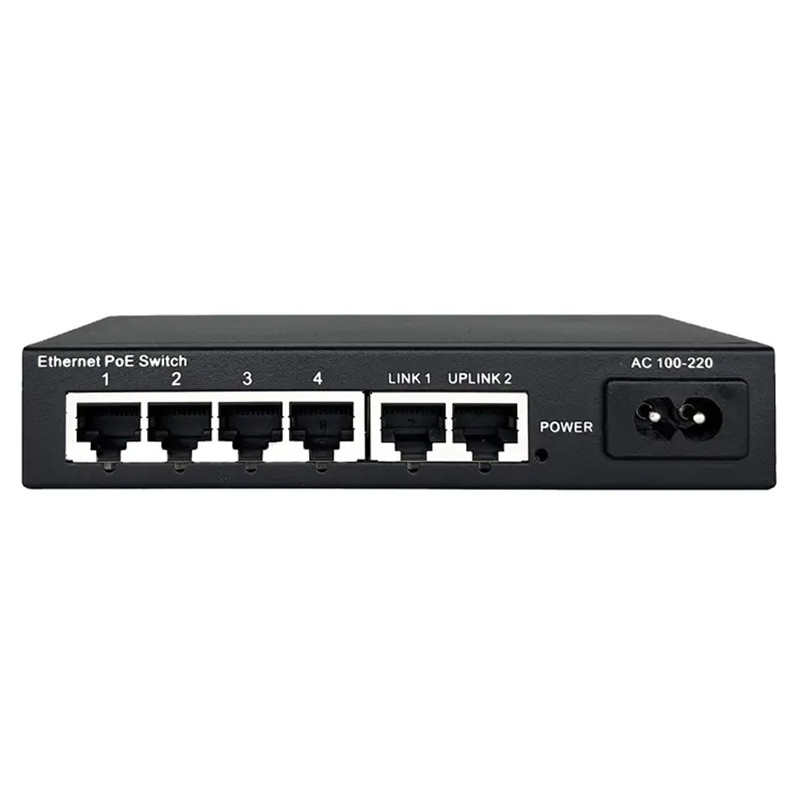

4 Ports Network Ethernet Switch 48V Unmanaged Network Switch

Short Description:

This model is PoE switch which provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.

Product Detail




Product Tags


● 4*10/100mbps POE port,1*10/100mbps UP-Link port

● 100m Transmission Distance

● Compatible with IEEE802.3AF/AT

● Whole Power:48W(52V0.93A)

● All port supported by MDI/MDIX auto flip and self negotiation

● Supply 4pcs 10/100Mpbs adaptive high speed forwarding data packet non-lost port.

● Add high level lightning protection device, up to 6000V.

● Each port max. power supply reached 30W.

● Low heat design, safe and reliable, high stability


Model HX-4P
Ports 4x10/100Mbps self-negotiated RJ45 port
PoE Standard IEEE802.3af/at
PoE Port Port 1~4
Power supply 60W MAX72 W
RJ45 PoE Power Supply Mode A positive electrode 1/2 negative electrode 3/6
(Custom power supply mode 4 / 5 V + 7 / 8 V-)
PoE port output Maximum 15.4 W/30W
Type of forwarding Storage forwarding
Exchange capacity 1.6 G
MAC Address Table 1K, automatic learning, automatic aging
VLan / 250extend Support customization
Input voltage AC 100-240V 50/60Hz
Working temperature 0℃~40℃
Storage temperature -40℃~70℃
Working humidity 10%-90% RH does not clot
Storage humidity 5%-90% RH does not clot
Appearance Size (L*W*H) 149 *94 *28 mm (163*137*34)
Machine weight Product weight(0.36 Kg) , Packing weight (0.47Kg)
Package specification 30SET W*D*H 435*345*195 14.8Kg
Network media 10BASE-T: Cat 3,4,5 unshielded twisted pair (£100m)
100BASE-TX: Cat5 and above unshielded twisted pair (£100m)
Lightning Level ±4KV


Widely used in:

● Widely used in:

● Smart city,

● Corparate Networking

● Security Monitoring

● Wireless Coverage

● Industrial Automation System

● IP phone (teleconferencing system), etc.

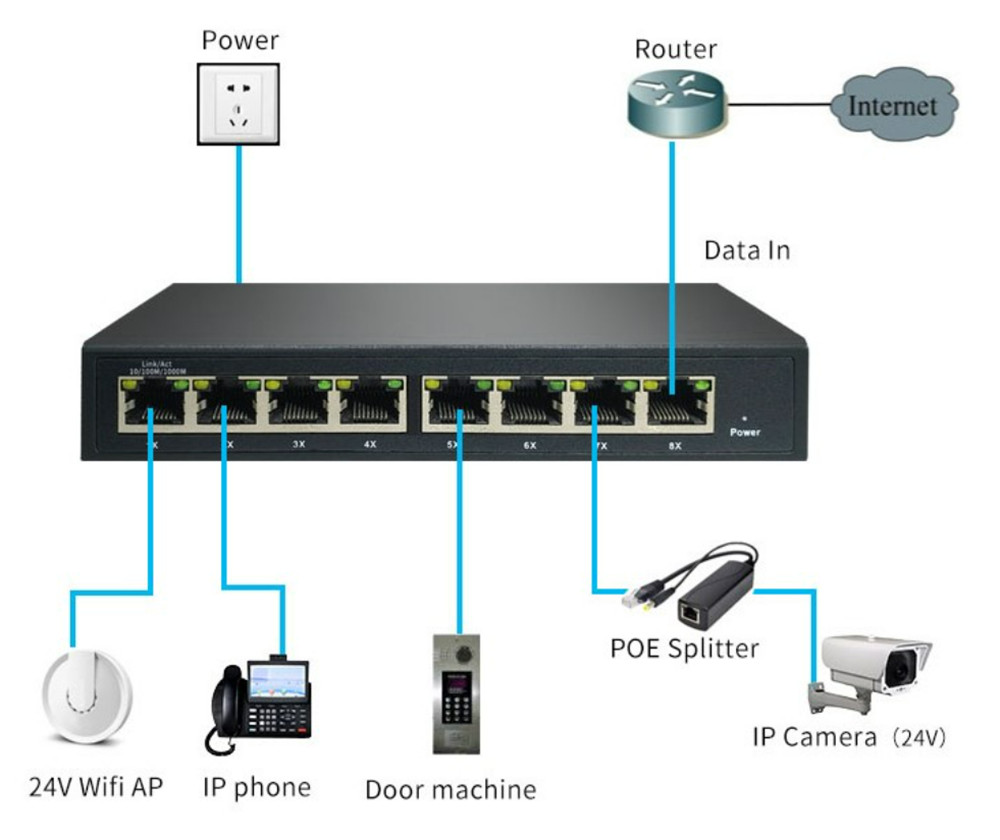

Ethernet switch 8 port passive POE switch -01 (5)
