Industrial Switch 8 GE POE ports 4 GE SFP port PoE Gigabit L2 Managed Switch

Short Description:

The industrial Gigabit PoE Switch is a standard Gigabit PoE+ managed Ethernet switch with 8compatible 10/100/1000BaseT(X),

Port1~8 support IEEE802.3af&at.The switch is highly flflexible, and the SFP fifiber port (after accessing the optical module) transmits data to the control center at a distance of up to 120 kilometers and has high immunity to electromagnetic interference.Support multiple management functions, including STP/RSTP/MSTP/EAPS, Trunk, Mirror, PoE power management, PoE devicesAutomatic detection, PoE status parameter display, PoE power on and off, IGMP, VLAN,QoS, RMON, bandwidth management, and port mirroring.

Support IEEE802.3af&at/802.3at ,and 4 Gigabit SFP slot.


Product Detail

Product Tags

Features

• 8 port 10/100/1000Mbps POE + 4 Port Fiber SFP.

• Support 12vdc , 24vdc, 48vdc input

• Data control: support 802.3x full duplex flow control, support network storm suppression

• Redundant network: support STP/RSTP/MSTP, support ERPS (self-healing time <20ms)

• Support IPv6, static routing •Support DHCP Server, DHCP replay, Qos

• Multicast management: Support IGMP Snooping ,IGMP V1/V2/V3;Support GMRP , static multicast

• Support port-based VLAN Port, IEEE 802.1Q VLAN and GVRP protocol, simple network planning

• QoS: Support QoS (IEEE 802.1p/1Q) and TOS/ Diffserv to increase network stability

• Security management: support ACL access control list, support 802.1x, support user classification management • Management function: support Web, SNMP management mode

• Monitoring maintenance: support port mirroring, interface status monitoring, log management •Alarm function

• Support 1588 clock protocal

• Support Layer 2 management

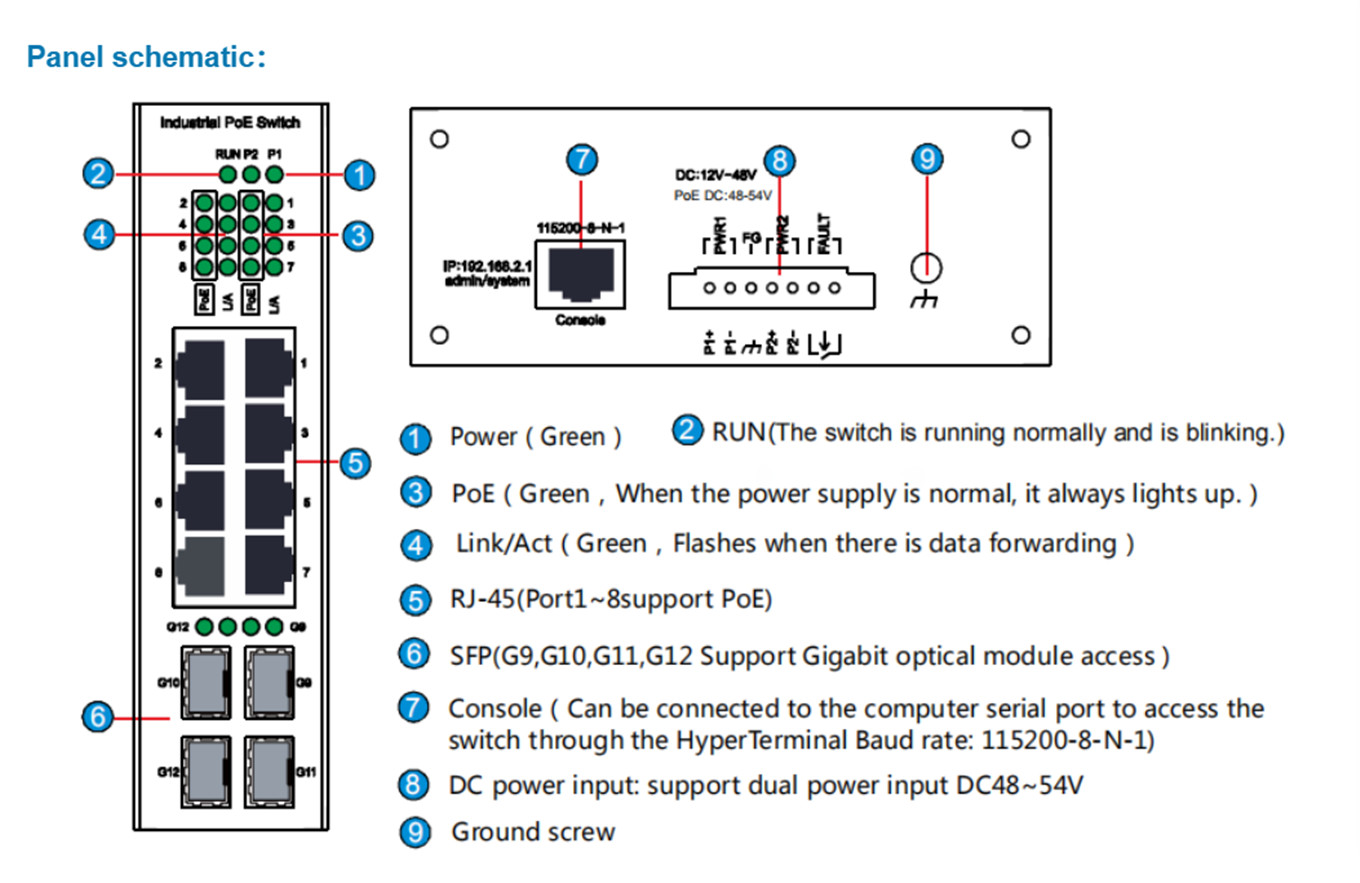

Industrial Switch 8 GE POE ports 4 GE SFP port PoE Gigabit L2 Managed Switch-01 (6)

Specifications

Model

HX-8P4SFP

Product Name

8 port 10/100/1000M +4 port SFP industrial POE Switch

PoE power

each port 15W/25W/30W

Uplink Ports

4 port SFP slot 1G

Input Voltage

DC 12~57V

Device Performance

Surge 6KV, ESD 15KV

PoE Protocol

IEEE802.3af/IEEE802.3at

Throughput

14.88Mpps

Packet Buffer

2M

MAC Address

4K

Jumbo Frame

4096bytes

Fiber Media

Multi-mode: 2km; Single-mode: 20/40/60/80KM

Switching Capacity

20Gbps

Transfer Mode

Store and forward

MTBF

100,000 hours

Protection

Lightening protection, IP40 protection

Power Supply

Input Voltage: DC12-57V /Terminal block

Shell

IP40 protect grade, metal shell

Installation

DIN-Rail or Wall mounts

Warranty

5 years

Network Protocols

IEEE802.3

IEEE802.3i

IEEE802.3u

IEEE802.3ab

IEEE802.3z

PoE Specification

PoE ports: 1-8 ports support PoE

Each PoE Port: Max. 30 Watts

Power Pin Assignment:1/2+;3/6-

Output Voltage: DC48V

Industry Standard

EMI: FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

EN61000-4-5 (Surge)

Working Environment

Working temperature: -40~75℃ ;

Storage temperature: -40~85℃

Relative Humidity: 5%~95 %( no condensation)

Weight & Size

Product Dimension(L*W*H): 188*130*64mm

Package Dimension(L*W*H): 242* 207*86mm

N.W: 0.76kg

G.W: 0.90kg

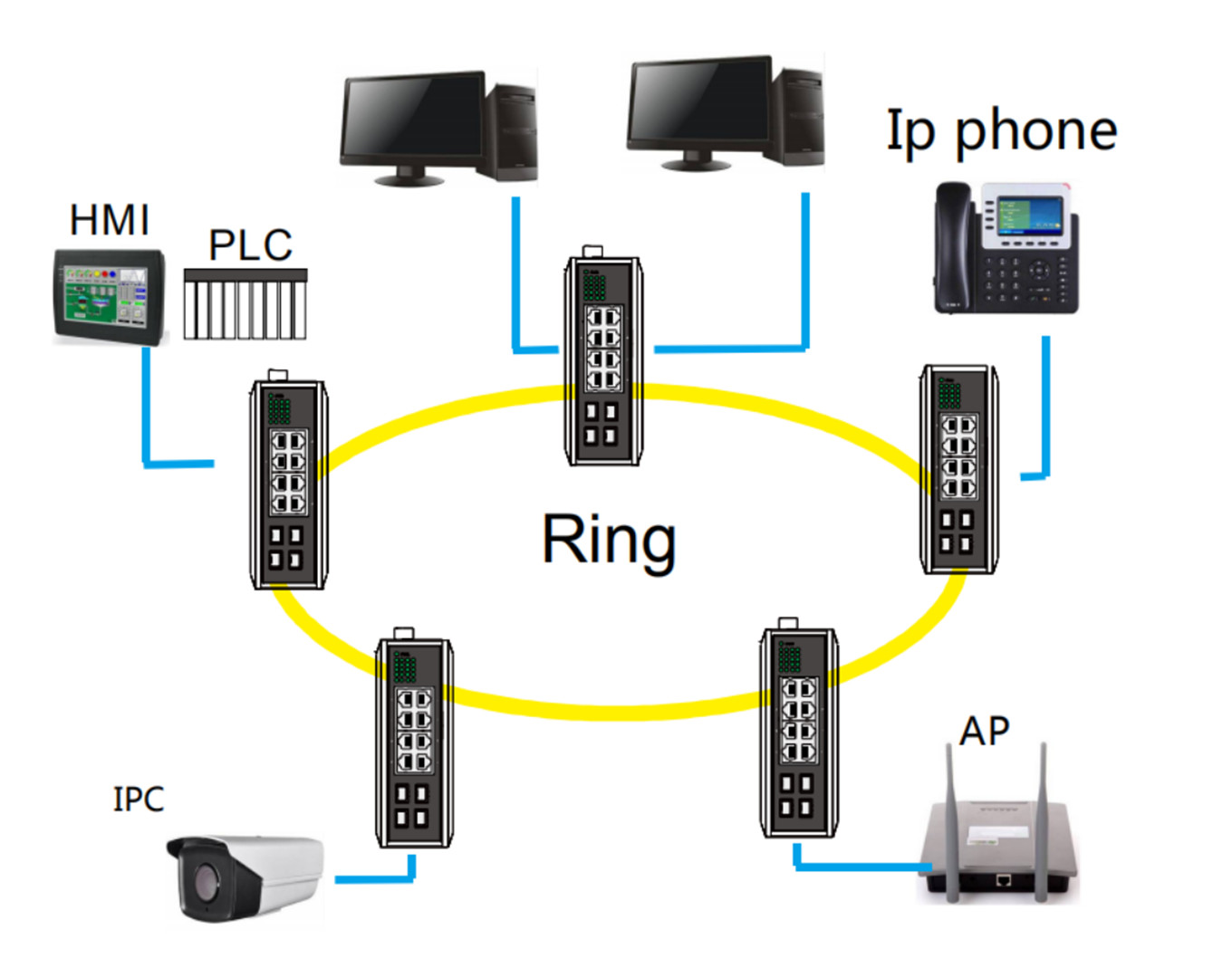

Applications

Industrial Switch 8 GE POE ports 4 GE SFP port PoE Gigabit L2 Managed Switch-01 (5)
