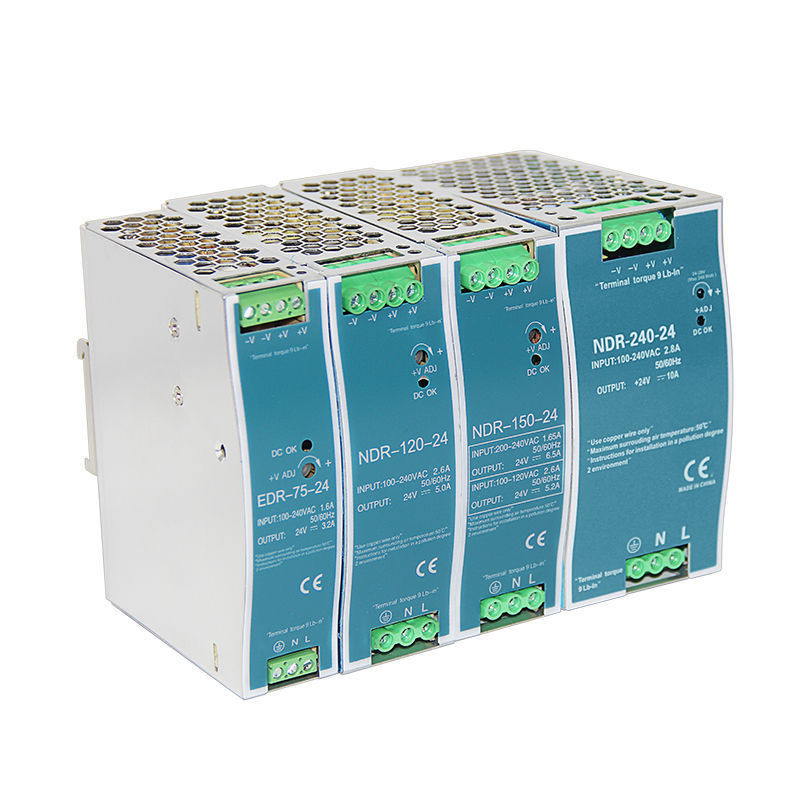

NDR-120-48 Din Rail power supply for Switch

Short Description:


Product Detail

Detail

Product Tags

Features

Switch mode power supply

1. AC input range ,constant DC output

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability, good performance.

5. Widely used in Switch, industrial automation, device, etc.

6. 24 months warranty

Specifications

Model

NDR-120-12

NDR-120-24

NDR-120-48

DC output voltage

12V

24V

48V

Rated output current

10A

5A

2.5A

Output current range

0-10A

0-5A

0-2.5A

Wave and noise

100mVp-p

120mVp-p

150mVp-p

Inlet stability

±0.5%

±0.5%

±0.5%

Load stability

±1%

±0.5%

±0.5%

DC output power

120W

120W

120W

Efficiency

86%

88%

89%

Adjustable range for DC voltage

10.8~13.2V

21.6~26.4V%

43.2~52.8V%

AC input voltage range

88~132VAC 47~63Hz;240~370VDC

Input current

3.3A/115V 2A/230V

AC inrush current

Cold-start current 30A/115V 60A/230V

Overload protection

105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery

Over-voltage protection

13.8~16.2V

27.6~32.4V

58~62V

Setup, rise , hold up time

1200ms,60ms, 60ms/230V

Withstand voltage

Input and output internal: Input and encolsure: 1.5KvAC, Output and enclosure: 0.5KvAC

Isolation resistance

Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ

Working temperature and humidity

’-10°c~50°c(Refer to output derating curve), 20%~90%RH

Overall dimension

40×125.2×113.5mm

Weight

0.6Kgs

Safety standards

CE

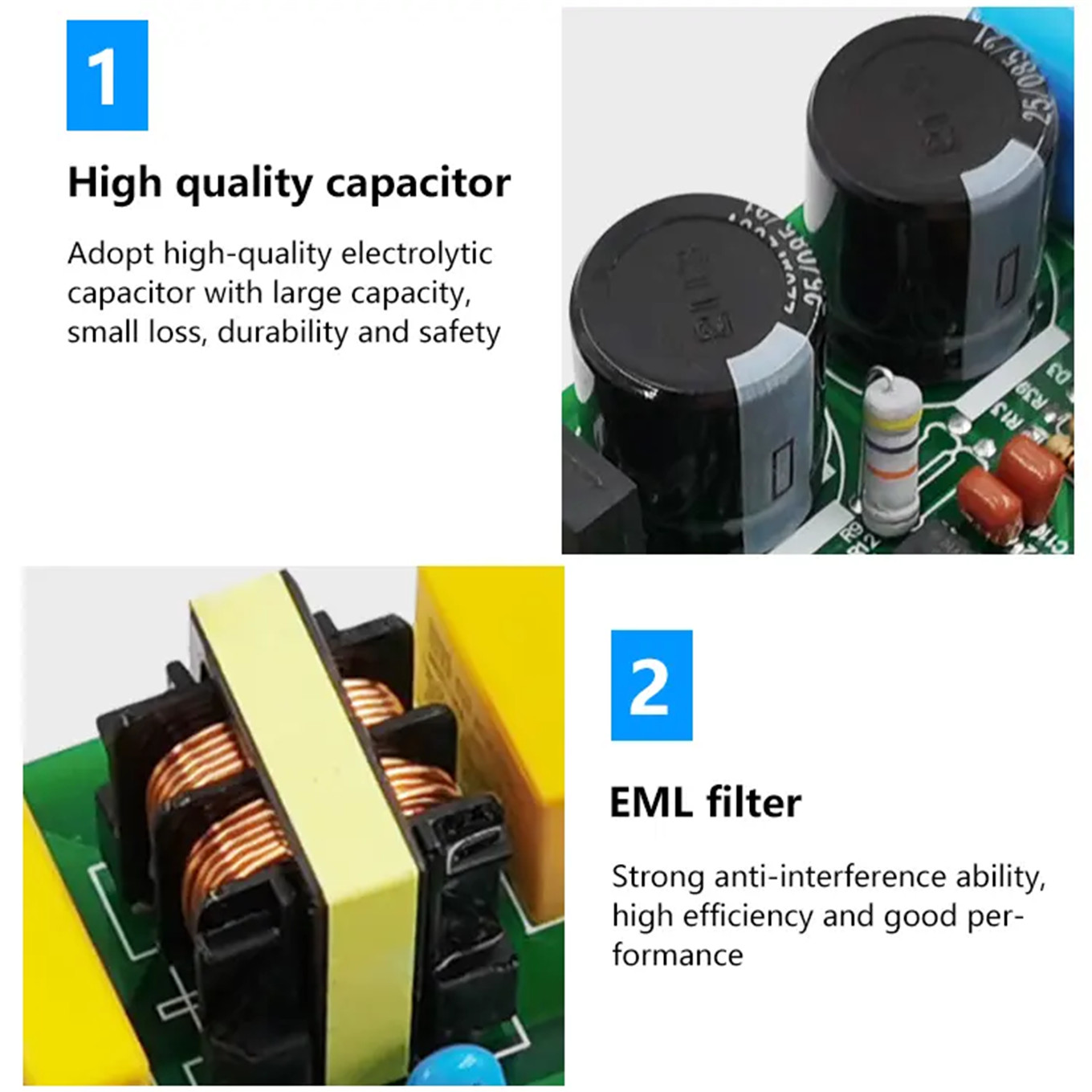

NDR-120-48 Din Rail power supply for Switch-01 (5)
