48 Ports Ethernet Switch Gigabit L3 Management Ethernet switch 100/1000M

Short Description:

HX-48G4L3 is a 48 Port 10G Uplink 48 Ports Gigabit L3 Management Ethernet POE switch, provides 48* 10/100/1000M POE Ethernet Ports, 4* 10G SFP+ Ports, 1* console Port, 1* USB Serial Port. With perfect security control policy and CPU Protect Policy, it can improve fault tolerance and ensure the stable operation of the network and load balance of links. The switch supports automatic DoS attack defense, SNMP, IEEE 802.1, STP, RSTP, and link aggregation. With advanced security features and advanced quality of Service (QoS), it can be used as a core, distribution or access layer switch with high-end port density, ease of management, it is an ideal choice for a variety of business networking applications.


Product Detail

Applications

OUR FACTORY

Product Tags

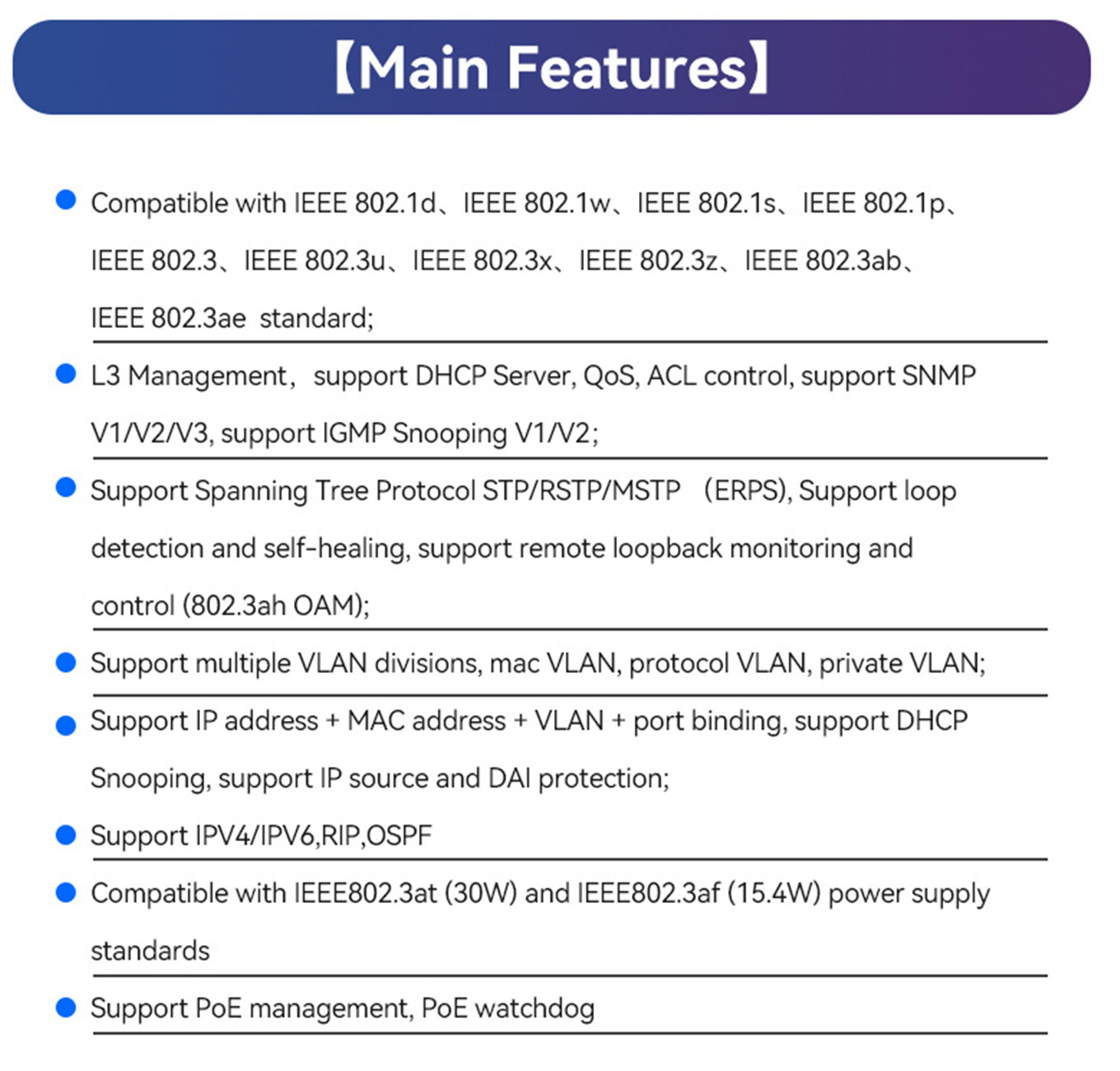

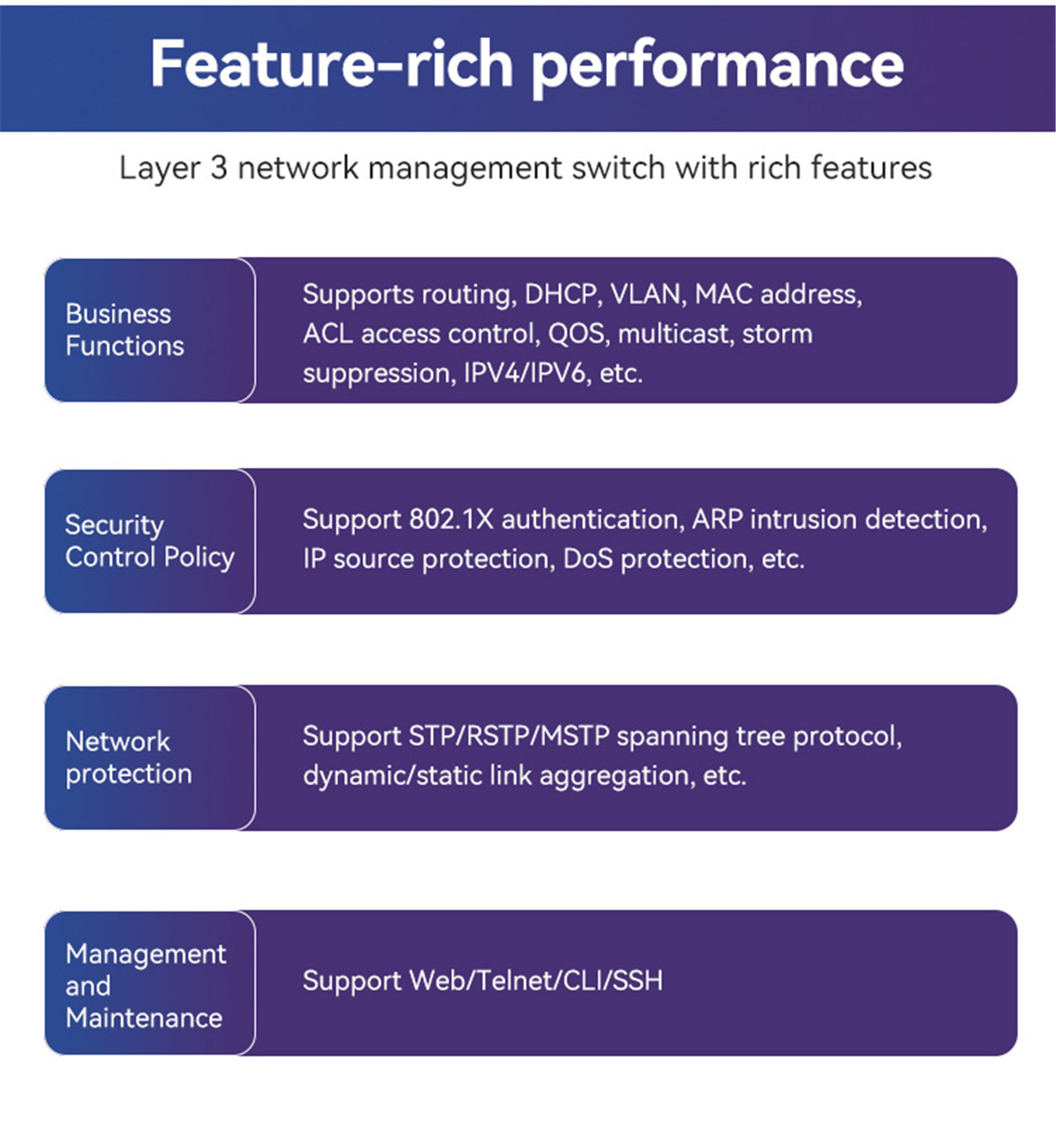

Features

48 Ports Ethernet Switch Gigabit L3 Management Ethernet switch  1001000M-01 (7)
48 Ports Ethernet Switch Gigabit L3 Management Ethernet switch  1001000M-01 (6)

Specifications

Product Model HX-48G4L3
Product Name 48-Port Gigabit PoE switch
Power AC100-240V /50-60Hz
Ethernet 48* 10/100/1000Mbps POE Ports (Ports 1-8 support BT Power Supply) 4* 10G SFP+ Port
1* RJ45 Console Port 1* USB serial Port
Switching Capacity 176Gbps
Packet Buffer Memory 512MByte
Flash Memory 32MByte
DDR SDRAM 16Mbit
MAC Address 32K
Jumbo Frame 12Kbytes
Transfer Mode Store and forward
MTBF 100000 hour
Power Voltage Working Voltage: AC100-240V 50/60HzSupply: 52V 11.5A/ 12V 6A
Working Environment Working Temperature:-10~50°CStorage Temperature:-40~70°C

Working Humidity :10%~90%,non-condensing

Storage Temperature:5%~90%,non-condensing

Applications

8 Port Ethernet Switch with 2 gigabit RJ45 port uplink POE network switch-01 (5)

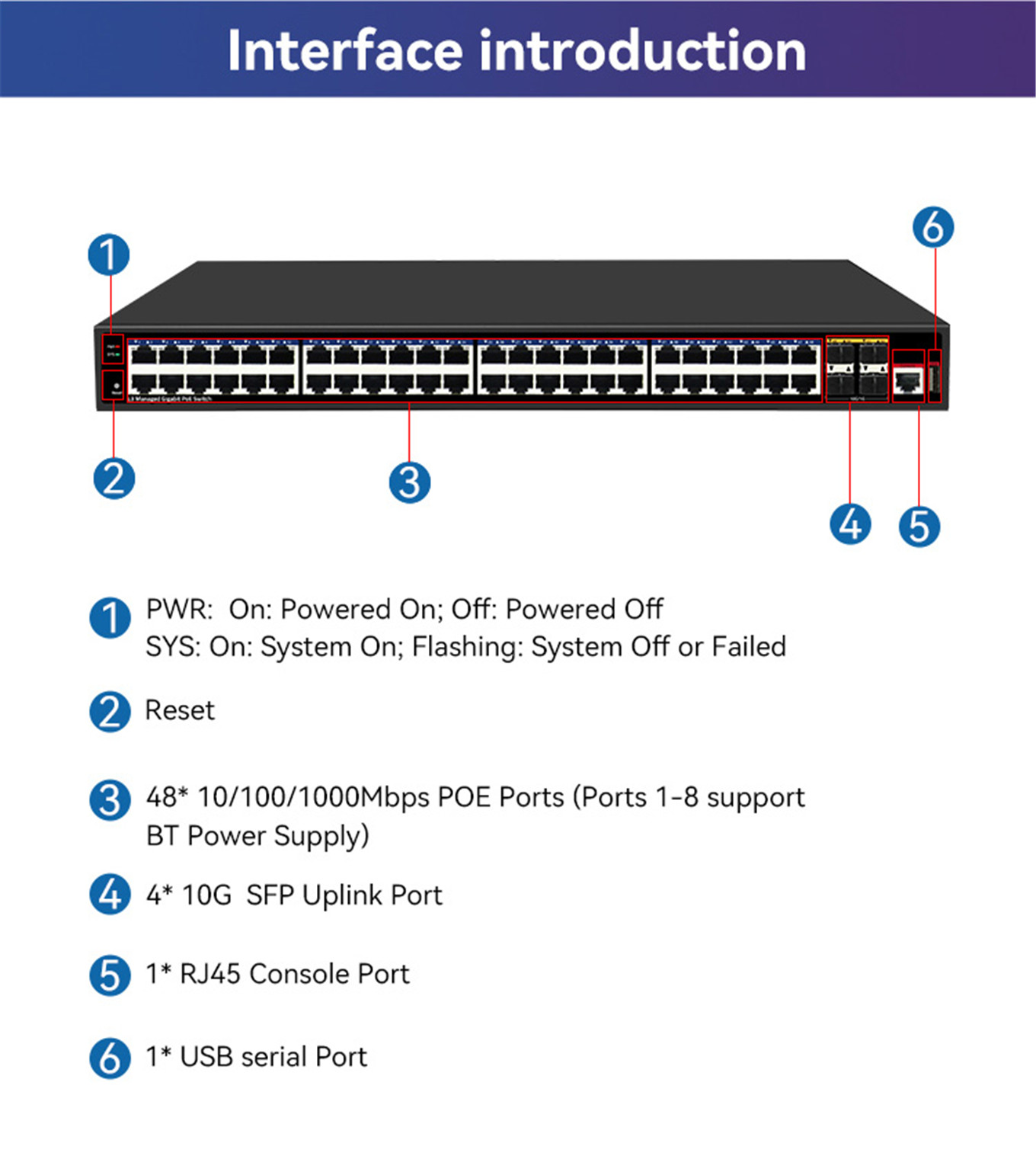

Interface introduction

48 Ports Ethernet Switch Gigabit L3 Management Ethernet switch  1001000M-01 (5)

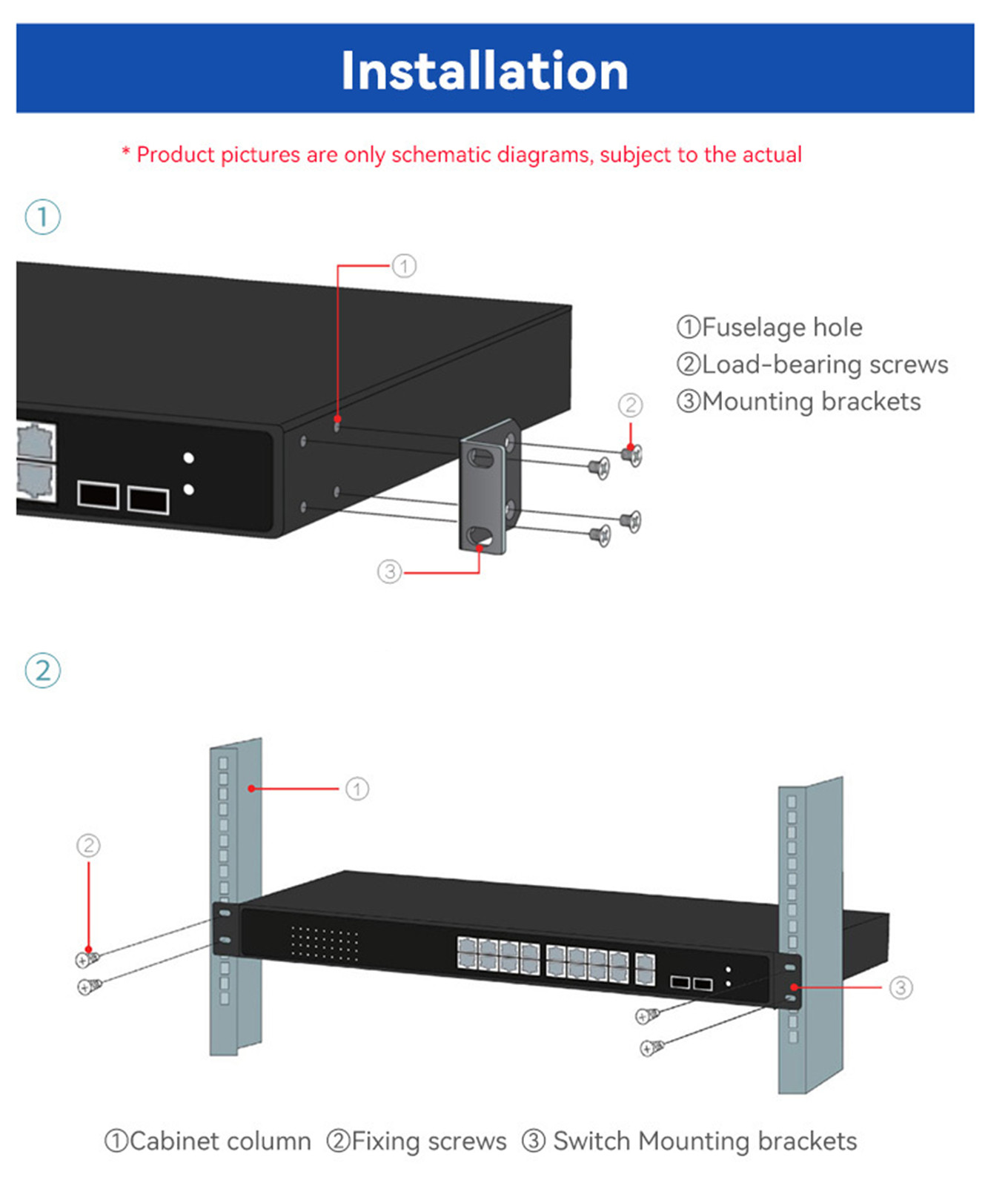

Installation

24 Ports Ethernet Switch with 2 Gigabit SFP optical ports uplink network switch-01 (5)
