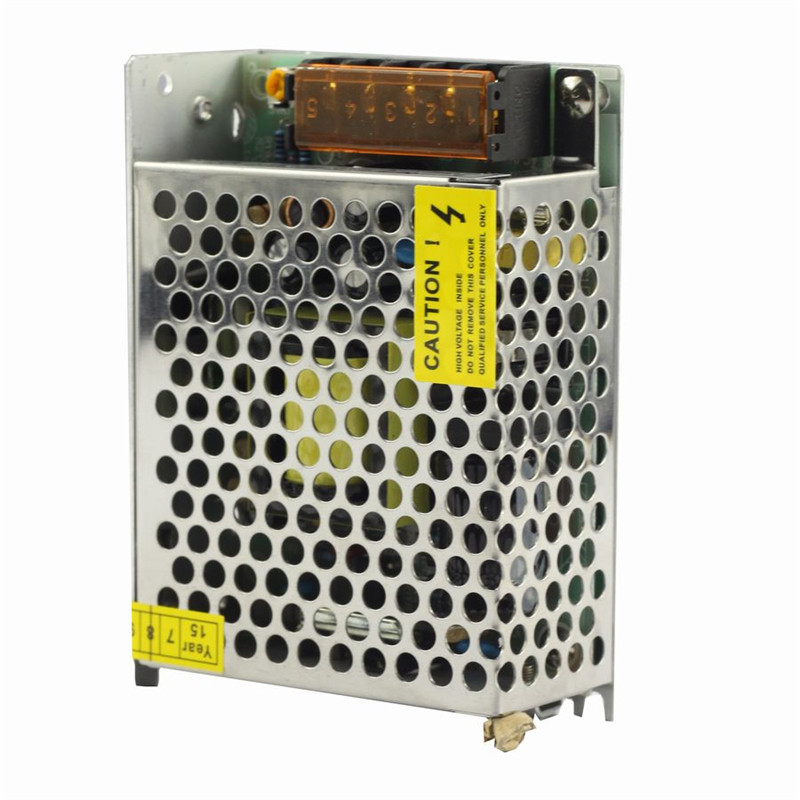

AC 100-240V to DC 60W 24V 2.5A Switching Power Supply

Short Description:

This 24V 60W is an excellent choice for switches. It ensures stable, reliable, and regulated output, leaving you worry-free about fluctuations and surges.Safety is always our top priority, and our 60W Switching Power Supply excels in this aspect too. With built-in protection mechanisms such as over-voltage, over-current, and short-circuit protection.


Product Detail

Product Tags

Features

Switching Power Supply

• Widely used in Switch, industrial automation, stepper machine,device, etc.

• Universal AC input / Full range.

• High efficieney

• Protections. Short circuit / Overload /Over voltage / Overload

• 100% full load burn-in test

• 2 years warranty

Specifications

Model No.

HSJ-60-12

HSJ-60-24

Output

DC Voltage

12V

24V

Current Range

0~5A

0~2.5A

Power

60W

Ripple And Noise

Max 240mVp-p

Voltage ADJ.Range

10~13V

22~26V

Voltage Tolerance

±5%

Setup, Rise Time

1500ms, 30ms / 230VAC

Input

Voltage Range

90~260VAC

Frequency Range

50~60Hz

Efficiency

>0.85

PF

0.6

Current

7A/110VAC, 4A/220VAC

Surge Current

40A/110VAC, 60A/220VAC

Leakage Current

Max 3.5mA/240VAC

Protection

Overload

Above 110%-150% of rated power

Shut-down output voltage, auto recovery after fault condition is removed

Overvoltage

Above Max. Voltage (105% of rated voltage)

Shut-down output voltage, auto recovery after fault condition is removed

Over temperature

90℃ ± 5℃(5~12V)  80℃ ± 5℃(24V)

Shut-down output voltage, auto recovery after fault condition is removed

Environment

Working Temp. & humidity

"-20°C~+60°C,  20%~90%RH

Storage Temp. & humidity

"-40°C~+85°C,  10%~95%RH

Safety

Withstand Voltage

I/P-O/P: 1.5KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min;

Safety

GB4943 ;IEC60950-1; EN60950-1

EMC

EN55032:2015/AC:2016; EN61000-3-2:2014; EN61000-3-3:2013; EN55024:2010+A1:2015

LVD

EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Other

Cooling

Free air

Lifespan

20000hrs

Dimensions (L*W*H)

110*78*38mm

Weight

230g

FAQ

Does the switch support PoE (Power over Ethernet)?

Yes, many of our switches support PoE, allowing you to power devices such as IP cameras or wireless access points directly through the Ethernet cable, eliminating the need for a separate power cord.

How many ports does the switch have?

Number of ports varies by model. We offer switches with different port configurations ranging from 5 ports to 48 ports, ensuring you can choose the one that best suits your network needs.

Can the switch be managed remotely?

Yes, most of our switches have remote management capabilities. Through a web-based interface or dedicated software, you can easily manage and configure switch settings, monitor network activity, and perform firmware updates from anywhere.

Is the switch compatible with different network protocols?

Our switches are designed to be compatible with a variety of network protocols including Ethernet, Fast Ethernet and Gigabit Ethernet. They can be seamlessly integrated with different devices and network architectures without any compatibility issues.

Applications
