Enterprise Wi-Fi Ceiling Ap 1200Mbps access point indoor AP

Short Description:

AX820 is an 11ac Wi-Fi standard high power Ceiling Wireless Access Point with MTK chipset supports WAVE 2 MU-MIMO , combined with 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), make more than 80 end users can access into it. It is an economic option for hotel, school, restaurant or other enterprise place.
FIT/FAT Operation Mode.


Product Detail

Product Tags

Features

Support FIT/FAT AP together, work with WLAN Controller, zero configure in IP address, ESSID, Channel, Password, upgrade firmware, backup and restore

Support advertisement and authentication functions like: WeChat/Google/SMS/Facebook/Member Authentication.

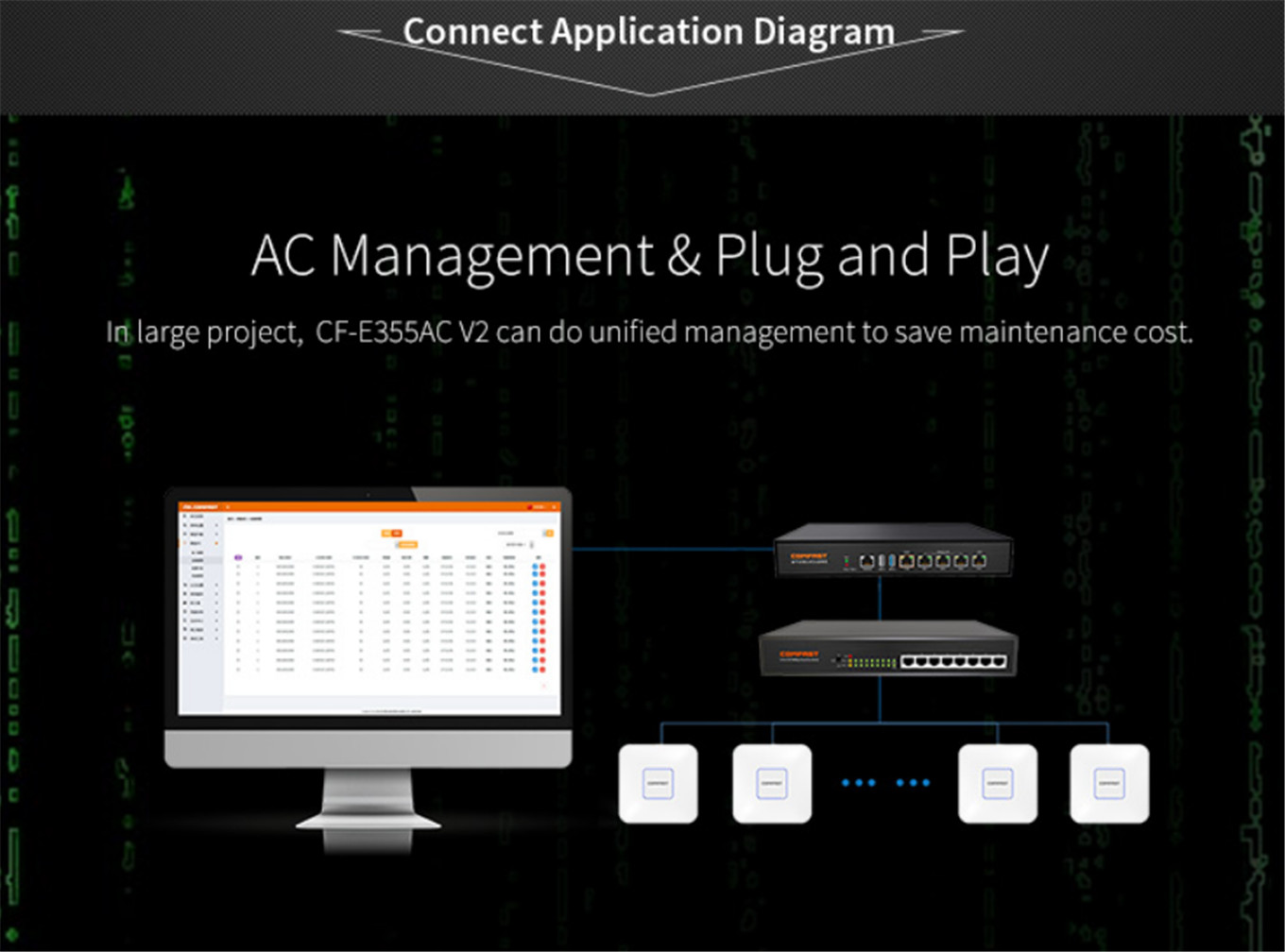

The WLAN controller can access into Cloud Management System, easy to make administrator access it, to do remotemonitoring/management at any time and any place, make this AP and WLAN controller more professional and cost saved in Wi-Fi Projects.

Supports two power supply methods: 48V PoE and DC 12V.

Enterprise Wi-Fi Ceiling Ap 1200Mbps access point indoor AP-01 (5)

Specifications

Product Name 1200Mbps Access Point
Model AE355AC
Antenna Built in 4*3dBi Antennas
Wireless Rate 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Wireless Standards IEEE802.11b /g /n /ac
Frequency 2.4GHz 5.8GHz
Chipset QCA9531+QCA9886
Physical Ports 1*10/100Mbps LAN RJ45 Ethernet Port;
1*10/100Mbps WAN RJ45 Ethernet Port;

1* RESET / WPS Button

Power Power Supply: 802.3af/802.3at POE Power Supply(0-100m);
Power Adapter: 48V 0.32A POE Power Adapter(Confifigured)
Enterprise Wi-Fi Ceiling Ap 1200Mbps access point indoor AP-01 (6)
Enterprise Wi-Fi Ceiling Ap 1200Mbps access point indoor AP-01 (7)
